ManualInteraction Class Reference

#include <manual_interaction.h>

Public Member Functions
	ManualInteraction (int freq_to_run_deque_analyser, std::shared_ptr< Logging > &logging)
	ManualInteraction class constructor Setup pinmode and interrupt. More...
	~ManualInteraction ()
	ManualInteraction class destructor Destroy the ManualInteraction object. More...
void	StopButtonDequeAnalyserFn ()
	Stop button deque analyser function set_button_deque_analyser varible to ture so it stops the threaded function. More...
void	StartButtonDequeAnalyserFn ()
	start button deque analyser function thread start button deque analyser function thread More...
std::tuple< CONFIG_SET::MANUAL_PUSH, CONFIG_SET::time_var >	GetManualActionAndTime ()
	Get the Manual Action And Time object. More...

Static Public Member Functions
static void	s_IntrAddToButtonDequeUp ()
	Hardware Interrrupt for up [red colored] button check for valid interrupt by software debouncing,switch state cheking and adds it to the button deque up. More...
static void	s_IntrAddToButtonDequeDown ()
	Hardware Interrrupt for down [black colored] button check for valid interrupt by software debouncing,switch state cheking and adds it to the button deque down. More...

Private Member Functions
void	ButtonstateDequeAnalyser ()
	thread function to check the deque status and identify the manual interaction mode Function will check state and time of occurance for objects in deque for determining mode More...
void	SetCurrentButtonState (std::deque< std::pair< bool, CONFIG_SET::time_var >> &button_press_deque_, CONFIG_SET::BUTTON_PRESS &button_state, CONFIG_SET::time_var &time)
	Set the CurrentButtonState object Function to sets the current buttonstate [0 ->NO_PUSH, 1->LONGPRESS, 2->DOUBLETAP]. More...
void	SetManualActionAndTime (CONFIG_SET::BUTTON_PRESS &button_1_state, CONFIG_SET::BUTTON_PRESS &button_2_state, CONFIG_SET::time_var &time_button_1, CONFIG_SET::time_var &time_button_2)
	Set the Manual Action And Time object sets manual_action_ and manual_action_time_. More...

Private Attributes
CONFIG_SET::MANUAL_PUSH	manual_action_ = CONFIG_SET::MANUAL_PUSH::NO_PUSH
CONFIG_SET::time_var	manual_action_time_
bool	stop_button_deque_analyser_ = true
std::unique_ptr< std::thread >	deque_analyser_ {nullptr}
std::shared_ptr< Logging >	logger_ {nullptr}
const int	freq_to_run_deque_analyser_
int	delay_to_run_deque_analyser_

Static Private Attributes
static std::deque< std::pair< bool, CONFIG_SET::time_var > >	s_button_state_deque_up_
static std::deque< std::pair< bool, CONFIG_SET::time_var > >	s_button_state_deque_down_
static bool	s_class_setup_flag_ = false
static std::mutex	s_deque_mutex_

Constructor & Destructor Documentation

ManualInteraction()

ManualInteraction::ManualInteraction	(	int	freq_to_run_deque_analyser,
		std::shared_ptr< Logging > &	logging
	)

ManualInteraction class constructor Setup pinmode and interrupt.

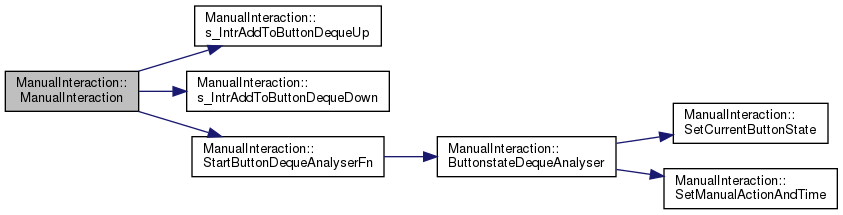

Here is the call graph for this function:

~ManualInteraction()

ManualInteraction::~ManualInteraction

(

)

ManualInteraction class destructor Destroy the ManualInteraction object.

Here is the call graph for this function:

Member Function Documentation

ButtonstateDequeAnalyser()

void ManualInteraction::ButtonstateDequeAnalyser ( )

private

thread function to check the deque status and identify the manual interaction mode Function will check state and time of occurance for objects in deque for determining mode

Here is the call graph for this function:

Here is the caller graph for this function:

GetManualActionAndTime()

std::tuple< CONFIG_SET::MANUAL_PUSH, CONFIG_SET::time_var > ManualInteraction::GetManualActionAndTime

(

)

Get the Manual Action And Time object.

Returns

std::tuple<CONFIG_SET::MANUAL_PUSH, CONFIG_SET::time_var>

s_IntrAddToButtonDequeDown()

void ManualInteraction::s_IntrAddToButtonDequeDown ( )

static

Hardware Interrrupt for down [black colored] button check for valid interrupt by software debouncing,switch state cheking and adds it to the button deque down.

Here is the caller graph for this function:

s_IntrAddToButtonDequeUp()

void ManualInteraction::s_IntrAddToButtonDequeUp ( )

static

Hardware Interrrupt for up [red colored] button check for valid interrupt by software debouncing,switch state cheking and adds it to the button deque up.

Here is the caller graph for this function:

SetCurrentButtonState()

void ManualInteraction::SetCurrentButtonState ( std::deque< std::pair< bool, CONFIG_SET::time_var >> &  button_press_deque_, CONFIG_SET::BUTTON_PRESS &  button_state, CONFIG_SET::time_var &  time  )

private

Set the CurrentButtonState object Function to sets the current buttonstate [0 ->NO_PUSH, 1->LONGPRESS, 2->DOUBLETAP].

Parameters

[in]	button_press_deque_	deque to analyse and set button_state
[out]	button_state	refrence to button_state passed
[out]	time	refrence to time variable for change of button_state

Here is the caller graph for this function:

SetManualActionAndTime()

void ManualInteraction::SetManualActionAndTime ( CONFIG_SET::BUTTON_PRESS &  button_1_state, CONFIG_SET::BUTTON_PRESS &  button_2_state, CONFIG_SET::time_var &  time_button_1, CONFIG_SET::time_var &  time_button_2  )

private

Set the Manual Action And Time object sets manual_action_ and manual_action_time_.

Parameters

[in]	button_1_state	current button state 1 [red]
[in]	button_2_state	current button state 2 [black]
[in]	time_button_1	time the current button state 1 was set
[in]	time_button_2	time the current button state 2 was set

Here is the caller graph for this function:

StartButtonDequeAnalyserFn()

void ManualInteraction::StartButtonDequeAnalyserFn

(

)

start button deque analyser function thread start button deque analyser function thread

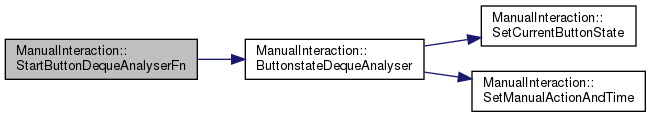

Here is the call graph for this function:

Here is the caller graph for this function:

StopButtonDequeAnalyserFn()

void ManualInteraction::StopButtonDequeAnalyserFn

(

)

Stop button deque analyser function set_button_deque_analyser varible to ture so it stops the threaded function.

Here is the caller graph for this function:

Member Data Documentation

delay_to_run_deque_analyser_

int ManualInteraction::delay_to_run_deque_analyser_

private

deque_analyser_

std::unique_ptr<std::thread> ManualInteraction::deque_analyser_ {nullptr}

private

freq_to_run_deque_analyser_

const int ManualInteraction::freq_to_run_deque_analyser_

private

logger_

std::shared_ptr<Logging> ManualInteraction::logger_ {nullptr}

private

manual_action_

CONFIG_SET::MANUAL_PUSH ManualInteraction::manual_action_ = CONFIG_SET::MANUAL_PUSH::NO_PUSH

private

manual_action_time_

CONFIG_SET::time_var ManualInteraction::manual_action_time_

private

s_button_state_deque_down_

std::deque< std::pair< bool, CONFIG_SET::time_var > > ManualInteraction::s_button_state_deque_down_

staticprivate

s_button_state_deque_up_

std::deque< std::pair< bool, CONFIG_SET::time_var > > ManualInteraction::s_button_state_deque_up_

staticprivate

s_class_setup_flag_

bool ManualInteraction::s_class_setup_flag_ = false

staticprivate

s_deque_mutex_

std::mutex ManualInteraction::s_deque_mutex_

staticprivate

stop_button_deque_analyser_

bool ManualInteraction::stop_button_deque_analyser_ = true

private

---

The documentation for this class was generated from the following files:

• mvp/src/manual_interaction/manual_interaction.h
• mvp/src/manual_interaction/manual_interaction.cpp
