config.h File Reference

This header file contains all the constants and enum that will be used throughout the repository like specific pins, mapping from state to led color etc. More...

#include <Arduino.h>
#include <chrono>
#include <cstdint>
#include <deque>
#include <iostream>

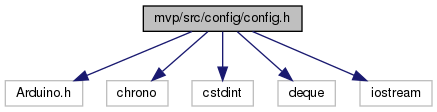

Include dependency graph for config.h:

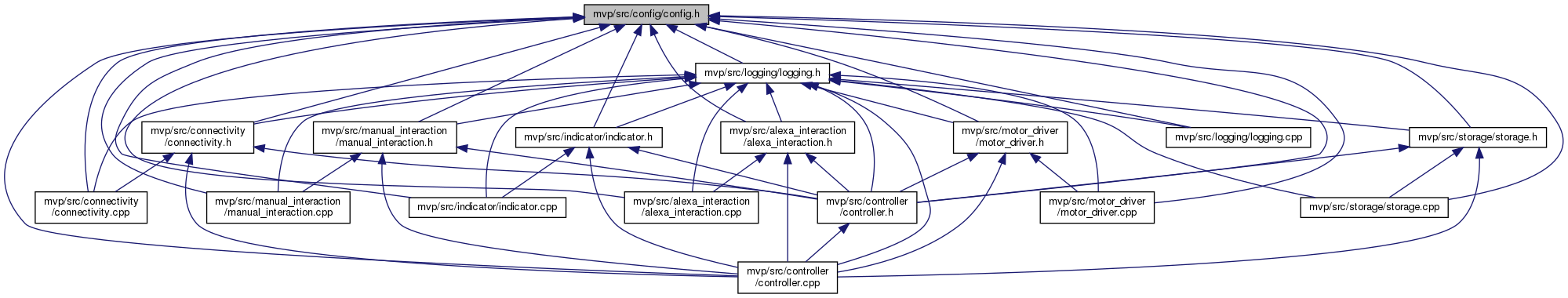

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes

struct  CONFIG_SET::MOTION_REQUEST

struct  CONFIG_SET::DEVICE_CRED

struct  CONFIG_SET::CALIB_PARAMS


Namespaces

 CONFIG_SET
 Namespace to be used for constants/enums.


Typedefs

using CONFIG_SET::time_var = std::chrono::time_point< std::chrono::system_clock >

using CONFIG_SET::current_time = std::chrono::system_clock


Enumerations

enum  CONFIG_SET::OPERATION_MODE { CONFIG_SET::OPERATION_MODE::RESET, CONFIG_SET::OPERATION_MODE::MAINTENANCE, CONFIG_SET::OPERATION_MODE::USER, CONFIG_SET::OPERATION_MODE::NA }

enum  CONFIG_SET::LOG_TYPE { CONFIG_SET::LOG_TYPE::INFO, CONFIG_SET::LOG_TYPE::ERROR, CONFIG_SET::LOG_TYPE::WARN }

enum  CONFIG_SET::LOG_CLASS {
  CONFIG_SET::LOG_CLASS::CONTROLLER, CONFIG_SET::LOG_CLASS::CONNECTIVITY, CONFIG_SET::LOG_CLASS::INDICATOR, CONFIG_SET::LOG_CLASS::LOGGING,
  CONFIG_SET::LOG_CLASS::MANUAL_INTERACTION, CONFIG_SET::LOG_CLASS::MOTOR_DRIVER, CONFIG_SET::LOG_CLASS::STORAGE, CONFIG_SET::LOG_CLASS::ALEXA_INTERACTION
}

enum  CONFIG_SET::MANUAL_PUSH {
  CONFIG_SET::MANUAL_PUSH::NO_PUSH, CONFIG_SET::MANUAL_PUSH::LONG_PRESS_UP, CONFIG_SET::MANUAL_PUSH::LONG_PRESS_DOWN, CONFIG_SET::MANUAL_PUSH::LONG_PRESS_BOTH,
  CONFIG_SET::MANUAL_PUSH::DOUBLE_TAP_UP, CONFIG_SET::MANUAL_PUSH::DOUBLE_TAP_DOWN, CONFIG_SET::MANUAL_PUSH::DOUBLE_TAP_BOTH
}

enum  CONFIG_SET::BUTTON_PRESS { CONFIG_SET::BUTTON_PRESS::NO_PUSH, CONFIG_SET::BUTTON_PRESS::LONG_PRESS, CONFIG_SET::BUTTON_PRESS::DOUBLE_TAP }

enum  CONFIG_SET::DEVICE_STATUS { CONFIG_SET::DEVICE_STATUS::FAULT, CONFIG_SET::DEVICE_STATUS::OPERATION_MODE, CONFIG_SET::DEVICE_STATUS::RESET_MODE, CONFIG_SET::DEVICE_STATUS::MAINTENANCE_MODE }

enum  CONFIG_SET::DRIVER_STATUS { CONFIG_SET::DRIVER_STATUS::AVAILABLE, CONFIG_SET::DRIVER_STATUS::BUSY, CONFIG_SET::DRIVER_STATUS::IN_ACTIVE }


Variables

const int CONFIG_SET::LOGGING_BAUD_RATE = 115200

const int CONFIG_SET::MOTOR_DRIVER_BAUD_RATE = 115200

const int CONFIG_SET::TRY_RECONNECT = 3

const int CONFIG_SET::MAX_SECONDS_LOST_WIFI = 600

const std::string CONFIG_SET::STORAGE_NAMESPACE = "madac"

const int CONFIG_SET::NUMBER_OF_LEDS = 1

const int CONFIG_SET::LED_BRIGHTNESS = 25

const int CONFIG_SET::DEQUE_ANALYZER_FREQ = 2

const std::string CONFIG_SET::KEY_SSID = "ssid"

const std::string CONFIG_SET::KEY_PASSWORD = "password"

const std::string CONFIG_SET::KEY_DEVICE_ID = "deviceID"

const std::string CONFIG_SET::KEY_TOTAL_STEP_COUNT = "totalStepCount"

const std::string CONFIG_SET::KEY_DIRECTION = "direction"

const std::string CONFIG_SET::KEY_MODE = "mode"

const String CONFIG_SET::DEFAULT_DEVICE_ID = "madac_blinds"

const float CONFIG_SET::MOTOR_DRIVER_R_SENSE = 0.11f

const uint8_t CONFIG_SET::MOTOR_DRIVER_ADDRESS = 0b00

const uint8_t CONFIG_SET::MOTOR_DRIVER_TOFF = 4

const uint8_t CONFIG_SET::MOTOR_DRIVER_BLANK_TIME = 24

const uint16_t CONFIG_SET::MOTOR_DRIVER_RMS_CURRENT = 2000

const uint16_t CONFIG_SET::MOTOR_DRIVER_MICROSTEP = 16

const uint32_t CONFIG_SET::MOTOR_DRIVER_TCOOL_THRS = 0xFFFFF

const uint8_t CONFIG_SET::MOTOR_DRIVER_SE_MIN = 0

const uint8_t CONFIG_SET::MOTOR_DRIVER_SE_MAX = 2

const uint8_t CONFIG_SET::MOTOR_DRIVER_SEDN = 0b01

const uint32_t CONFIG_SET::MOTOR_DRIVER_MAX_SPEED = 5000

const int CONFIG_SET::MOTOR_DRIVER_SG_THRESH = 45

const int CONFIG_SET::MOTOR_STOP_TIME_SEC = 120

const float CONFIG_SET::STEP_FRACTION_ALLOWANCE = 0.05

const int CONFIG_SET::MODE_EXPIRE_TIME_LIMIT = 300

const int CONFIG_SET::WIFI_DISCONNECT_RESTART_TIME_LIMIT = 60

const int CONFIG_SET::PIN_RGB_LED = 32

static const int CONFIG_SET::PIN_BUTTON_UP = 33

static const int CONFIG_SET::PIN_BUTTON_DOWN = 25

const int CONFIG_SET::PIN_MD_ENABLE = 4

const int CONFIG_SET::PIN_MD_RX = 16

const int CONFIG_SET::PIN_MD_TX = 17

const int CONFIG_SET::PIN_MD_MS1 = 5

const int CONFIG_SET::PIN_MD_MS2 = 18

const int CONFIG_SET::PIN_MD_STEP = 22

const int CONFIG_SET::PIN_MD_DIR = 23

const int CONFIG_SET::PIN_MD_INDEX = 21

const int CONFIG_SET::PIN_MD_DIAG = 19


Detailed Description

This header file contains all the constants and enum that will be used throughout the repository like specific pins, mapping from state to led color etc.

Author
Mahimana Bhatt (mahim.nosp@m.anab.nosp@m.hatt@.nosp@m.gmai.nosp@m.l.com)
Version
0.1
Date
2022-07-19
Copyright
Copyright (c) 2022
